Terrain Generation Tutorial: Island Modification

The algorithm as it has been presented so far works well for generating terrains that run all the way to the edge of the height map. In many cases, this may be what we want. However, if you find yourself needing islands, where the heightmap tends towards zero at the edges, there is a simple modification we can make to the algorithm.

Choosing Centerpoints

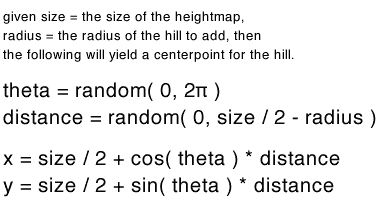

As we saw, step 2 involves choosing a random centerpoint for a hill. Normally, this is chosen to be anywhere on the heightmap, evenly distributed. What we want now is to have our hills clustered towards the middle of the heightmap. To do this, we need two random values, call them distance and theta. The distance will be how far from the center of the heightmap our hill will be placed. It can range from zero (right in the middle) to half the size of the heightmap minus the radius of the hill. This will prevent hills from reaching the edge of the heightmap. Theta determines in which direction from the center the hill be placed. It ranges from 0 to two pi. From these two values, we can then calculate the x and y coordinates for the centerpoint of the hill and proceed as usual with the algorithm. So, to generate centerpoints for hills using the island modification, we use the following equations:

Note that the maximum radius for a hill should be less than half
of the size of the heightmap.

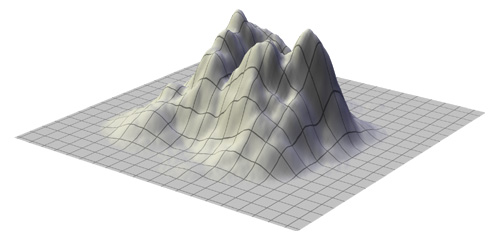

Using this, we can add as many hills as we want, and still be sure that the outer edge of the heightmap will reach zero. It looks something like this:

Note that when we run the flattening step on the island, it ends up shrinking the
coastline pretty significantly. If using islands, you might want to avoid flattening.

Water Plane

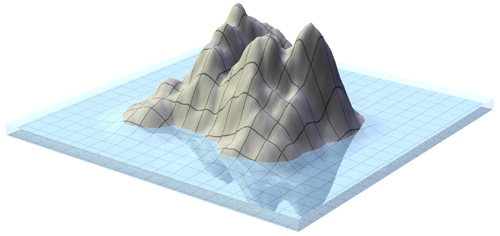

By adding a water plane at a height slightly above zero, we get something like this:

Here you can clearly see the coastline. For a more irregular coastline, try decreasing the
maximum hill size and/or lowering the number of hills.

That's about it. I hope this has been interesting and useful to you. As you can see, the algorithm is pretty straightforward. Finally, on to the code itself.
